Aluminum Foil Tape

Aluminum foil tape is a functional industrial tape made from high-purity aluminum foil (≥99.95%) as a backing material and coated with a pressure-sensitive adhesive.

Production Process Flow

From raw materials to finished product, every step is rigorously controlled to ensure consistent and reliable performance.

A high-performance pressure-sensitive adhesive is uniformly applied to a large jumbo roll of aluminum foil backing using a precision coating machine.

The coated foil then passes through a long drying oven. The heat evaporates the solvent from the adhesive, leaving a smooth, stable, and tacky layer.

For tapes that require a release liner, a silicone-coated paper or film is laminated onto the adhesive surface at this stage.

The large jumbo roll is then precisely cut into smaller rolls of specific widths and lengths according to customer requirements using a slitting machine.

Finally, the finished rolls are individually wrapped, labeled, and packed into cartons for shipment.

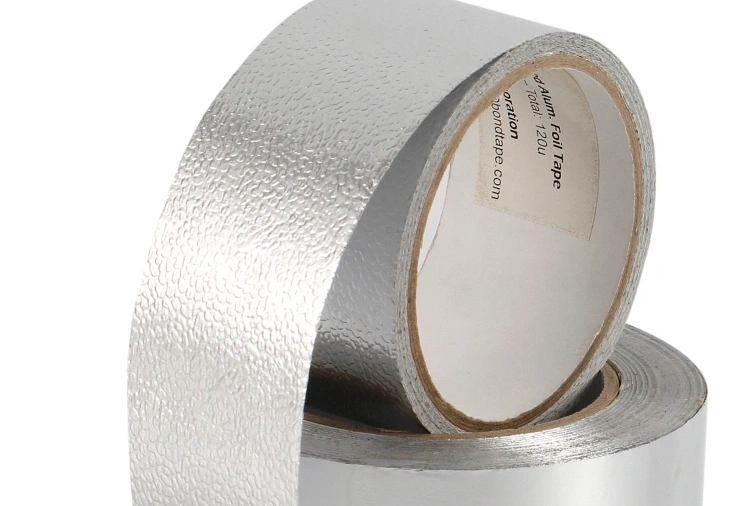

Aluminum-Foil-Tape3-1

Pure Aluminum Foil Tape​

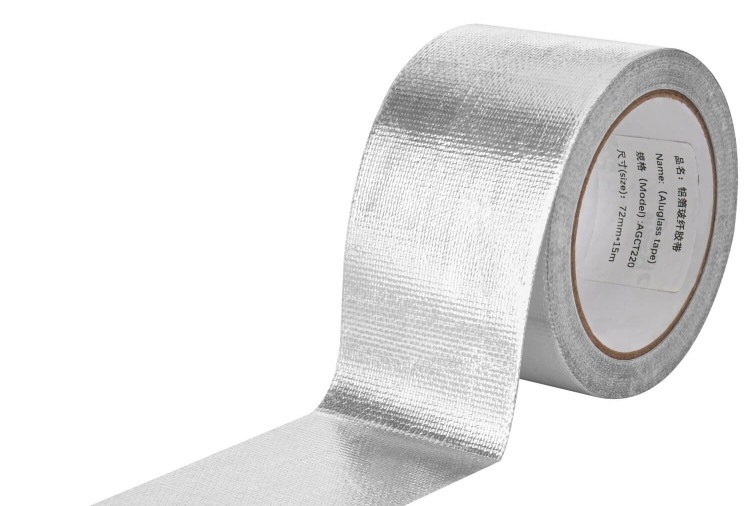

Aluminum-foil-fiberglass-cloth-tape1

Aluminum foil fiberglass cloth tape

Pure Aluminum Foil Tape​ Specification Sheet

Item No. Description Backing micron Thickness micron Adhesive Application temperature
PT-AT1825 foil/solvent acrylic adhesive/silicone release 18μ 55μ solvent acrylic/flame-retardant -30~120℃
PT-AT2225 22μ 66μ -30~120℃
PT-AT2525 25μ 65μ -30~120℃
PT-AT3025 30μ 70μ -30~120℃
PT-AT3625 36μ 76μ -30~120℃
PT-AT4025 40μ 80μ -30~120℃
PT-AT4525 45μ 85μ -30~120℃
PT-AT5025 50μ 90μ -30~120℃
PT-AT7525 75μ 125μ -30~120℃
PT-AT10025 100μ 150μ -30~120℃
PT-AT12525 125μ 175μ -30~120℃

Aluminum foil fiberglass cloth tape Specification Sheet

Item No. Description Backing micron Thickness micron Adhesive Application temperature
PT-AFT705 foil/fiberglass/solvent acrylic adhesive/silicone release 7μ 150μ rubber resin -30~80℃
PT-AFT725 foil/fiberglass/solvent acrylic adhesive/silicone release 7μ 170μ solvent acrylic -30~120℃
PT-AFT725R foil/fiberglass/F.R.solvent acrylic adhesive/ 7μ 170μ F.R.solvent acrylic -30~120℃
PT-AFT1825R silicone release 18μ 180μ -30~120℃
PT-AFT18-7628 foil/fiberglass/solvent acrylic adhesive/silicone release 18μ 200μ solvent acrylic -30~120℃
PT-AFT7-14OVP foil/fiberglass/anti high tempt.solvent acrylic /silicone release 7μ 180μ anti high temp.solvent acrylic -30~200℃
PT-AFT7-3732VA foil/fiberglass/solvent acrylic adhesive/silicone release 7μ 400μ solvent acrylic -30~120℃
PT-AFT18-2025VP foil/fiberglass/anti high tempt.solvent acrylic /silicone release 18μ 800μ anti high temp.solvent acrylic -30~200

Technology Showdown: Aluminum Foil Tape vs. Duct Tape

While both are staple utility tapes, their core materials lead to vastly different performance characteristics. The choice between them is critical for applications involving temperature, moisture, and long-term durability.

Aluminum Foil Tape

  • Excellent Thermal Resistance: Performs reliably in extreme cold and high heat, making it ideal for HVAC, ductwork, and thermal insulation.

  • Weather & UV Resistant: The metallic backing is impervious to UV degradation and moisture, ensuring long-term outdoor durability.
  • Chemical Resistant: Resists exposure to many common chemicals, oils, and greases.

  • Conductive Properties: Can be used for thermal conductivity or electrical shielding applications.

  • Low Tear Resistance: The thin foil backing can be punctured or torn more easily than fabric-reinforced tapes.

Duct Tape

  • High Tensile Strength: The fabric mesh reinforcement provides excellent strength and resistance to tearing and abrasion.

  • Flexible & Conformable: Easily conforms to irregular shapes and surfaces for general repairs and bundling.

  • Strong Initial Adhesion: The aggressive rubber-based adhesive sticks well to a wide variety of surfaces.

  • Poor Temperature Resistance: The adhesive can fail in high heat, and the backing can become brittle in extreme cold.
  • Not UV Resistant: The polyethylene coating degrades quickly under sun exposure, leading to failure in outdoor applications.
  • Leaves Heavy Residue: The adhesive often breaks down over time, leaving a difficult-to-clean sticky residue.

Functions, Uses, and Applications

Aluminum foil tape is a versatile material used in a wide range of demanding environments. Its core function is to provide a durable, reflective, and conductive barrier for sealing, shielding, and repairing.

Thermal Shielding & Sealing

Reflects heat and light. Seals joints and seams in HVAC ductwork to prevent air leaks and improve energy efficiency.

Moisture & Vapor Barrier

Creates a waterproof and vapor-proof seal on insulation materials, protecting them from moisture and environmental damage.

Electrical & EMI Shielding

Provides a conductive surface for grounding, draining static charge, and shielding sensitive electronic components from electromagnetic interference (EMI).

Primary Application Fields

Our product is widely used for sealing, shielding, and repair in numerous industrial and commercial sectors:

  • HVAC & Refrigeration (duct sealing, insulation wrapping)
  • Automotive & Aerospace (heat shields, wire harness wrapping)
  • Electronics (EMI/RFI shielding, grounding)
  • Construction & Building (vapor barriers, roof patching)

Quality Standards & Certifications

We are committed to delivering the highest quality products, a promise backed by strict internal standards and authoritative third-party certifications.

Appearance Standard

Tape surface is smooth and free of defects like bubbles, scratches, or impurities. Edges are clean with no adhesive bleed.

Performance Consistency

Each batch is tested for key performance indicators like peel strength to ensure stable and reliable performance.

Dimensional Tolerance

Tape surface is smooth and free of defects like bubbles, scratches, or impurities. Edges are clean with no adhesive bleed.

Third-Party Inspection & Certification

ISO 9001:2015

Quality Management System certification, demonstrating our ability to consistently produce high-quality products.

RoHS Directive

Tape surface is smooth and free of defects like bubbles, scratches, or impurities. Edges are clean with no adhesive bleed.

Dimensional Tolerance

Tape surface is smooth and free of defects like bubbles, scratches, or impurities. Edges are clean with no adhesive bleed.
