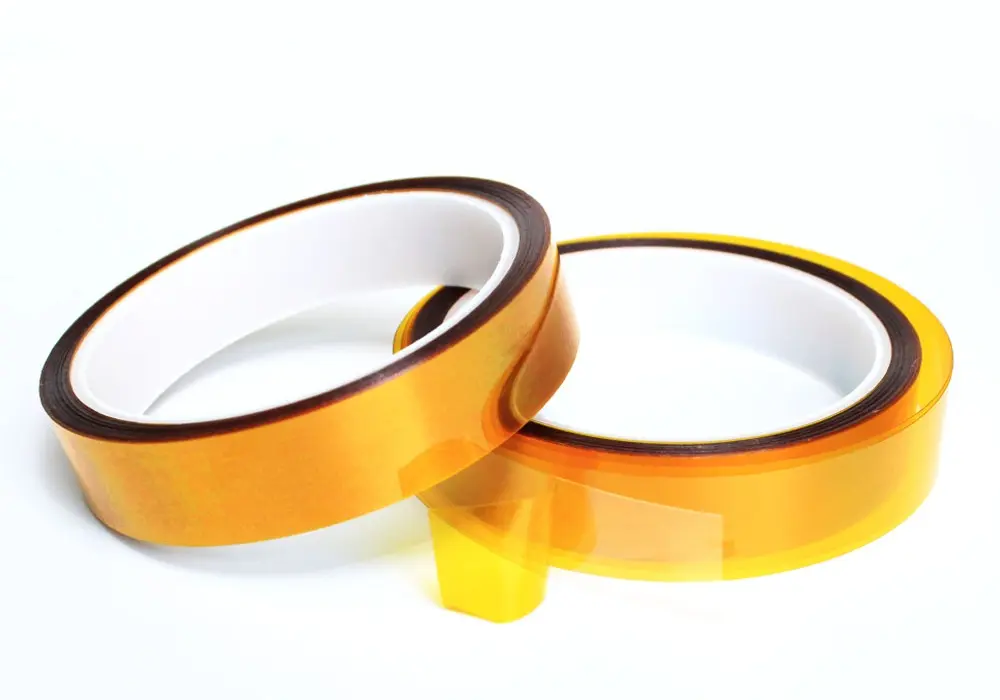

Polyimide Tape with Liner
Polyimide tape with liner is a high-performance tape that uses a polyimide film as the base material, coated with a high-temperature resistant adhesive, and covered with a padding layer on the adhesive surface.
- High Temperature Resistance: Withstands 260°C continuously and 300°C short-term. No residue or deformation during reflow/wave soldering. Liner protects adhesive from contamination and aging.
- Strong Electrical Insulation: Dielectric strength ≥6kV prevents breakdowns and short circuits. Liner keeps adhesive clean, ensuring reliable insulation.
- Good Chemical Stability: Resists solvents, fluxes, and oils without degradation. Liner shields adhesive from premature chemical reactions.
- Excellent Dimensional Stability: Minimizes shrinkage and curling for precise placement. Liner maintains tape flatness and original dimensions.
Product Selling Points
- Excellent high-temperature reliability: Ensures stable performance in extreme high-temperature environments (such as reflow soldering), protecting your critical components and preventing production accidents or product defects caused by tape failure.
- Long-term stable electrical performance: Provides high dielectric strength, effectively isolating circuits and significantly reducing the risk of short circuits and electrical breakdown, ensuring the long-term safe and reliable operation of your electronic devices.
- Superior chemical resistance: Maintains performance without degradation in harsh chemical environments (such as contact with solvents and fluxes), reducing maintenance and replacement costs due to chemical corrosion.
- Precise process control: Excellent dimensional stability prevents shifting, shrinking, or curling during long-term use, helping to improve production efficiency and reduce material waste and rework.
- Clean and efficient operation: The liner design ensures that the adhesive surface remains clean before use, is easy to peel and precisely apply, simplifying the operation process

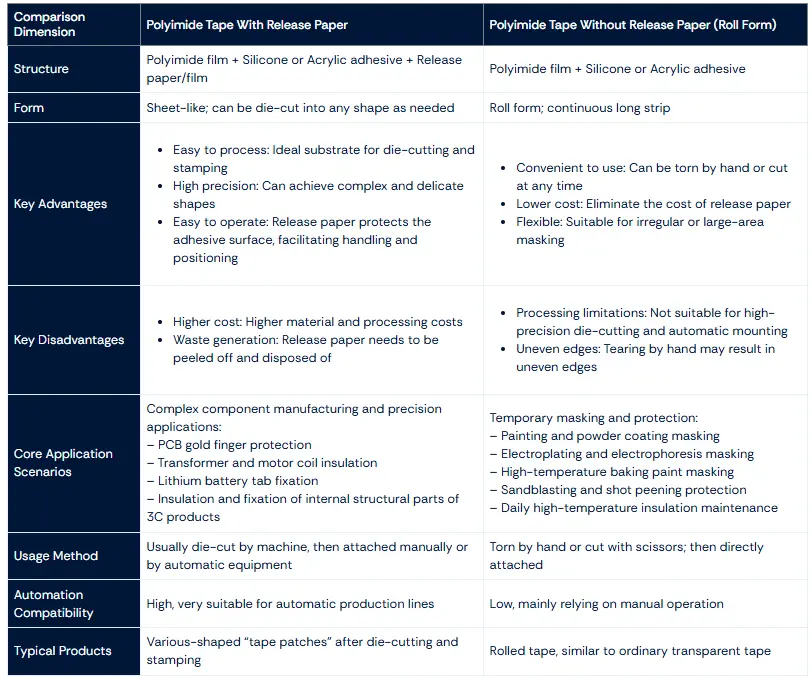

Polyimide Tape (With/Without Release Paper) Selection and Application Comparison Table
| Comparison Dimension | Polyimide Tape With Release Paper | Polyimide Tape Without Release Paper (Roll Form) |
|---|---|---|
| Structure | Polyimide film + Silicone or Acrylic adhesive + Release paper/film | Polyimide film + Silicone or Acrylic adhesive |
| Form | Sheet-like; can be die-cut into any shape as needed | Roll form; continuous long strip |
| Key Advantages |
|
|
| Key Disadvantages |
|
|
| Core Application Scenarios | Complex component manufacturing and precision applications: – PCB gold finger protection – Transformer and motor coil insulation – Lithium battery tab fixation – Insulation and fixation of internal structural parts of 3C products |
Temporary masking and protection: – Painting and powder coating masking – Electroplating and electrophoresis masking – High-temperature baking paint masking – Sandblasting and shot peening protection – Daily high-temperature insulation maintenance |
| Usage Method | Usually die-cut by machine, then attached manually or by automatic equipment | Torn by hand or cut with scissors; then directly attached |
| Automation Compatibility | High, very suitable for automatic production lines | Low, mainly relying on manual operation |
| Typical Products | Various-shaped “tape patches” after die-cutting and stamping | Rolled tape, similar to ordinary transparent tape |
Polyimide Tape (With/Without Release Paper) Selection and Application Comparison Table

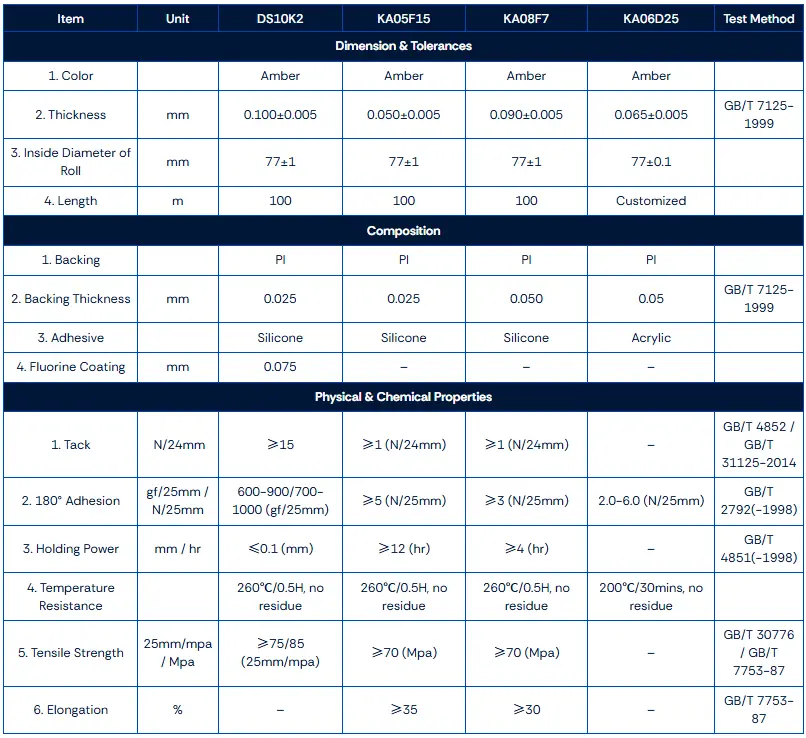

Specifications diagram for padded polyimide tape
| Item | Unit | DS10K2 | KA05F15 | KA08F7 | KA06D25 | Test Method |
|---|---|---|---|---|---|---|
| Dimension & Tolerances | ||||||
| 1. Color | Amber | Amber | Amber | Amber | ||
| 2. Thickness | mm | 0.100±0.005 | 0.050±0.005 | 0.090±0.005 | 0.065±0.005 | GB/T 7125-1999 |
| 3. Inside Diameter of Roll | mm | 77±1 | 77±1 | 77±1 | 77±0.1 | |
| 4. Length | m | 100 | 100 | 100 | Customized | |
| Composition | ||||||
| 1. Backing | PI | PI | PI | PI | ||
| 2. Backing Thickness | mm | 0.025 | 0.025 | 0.050 | 0.05 | GB/T 7125-1999 |
| 3. Adhesive | Silicone | Silicone | Silicone | Acrylic | ||
| 4. Fluorine Coating | mm | 0.075 | – | – | – | |
| Physical & Chemical Properties | ||||||
| 1. Tack | N/24mm | ≥15 | ≥1 (N/24mm) | ≥1 (N/24mm) | – | GB/T 4852 / GB/T 31125-2014 |
| 2. 180° Adhesion | gf/25mm / N/25mm | 600-900/700-1000 (gf/25mm) | ≥5 (N/25mm) | ≥3 (N/25mm) | 2.0-6.0 (N/25mm) | GB/T 2792(-1998) |
| 3. Holding Power | mm / hr | ≤0.1 (mm) | ≥12 (hr) | ≥4 (hr) | – | GB/T 4851(-1998) |
| 4. Temperature Resistance | 260℃/0.5H, no residue | 260℃/0.5H, no residue | 260℃/0.5H, no residue | 200℃/30mins, no residue | ||
| 5. Tensile Strength | 25mm/mpa / Mpa | ≥75/85 (25mm/mpa) | ≥70 (Mpa) | ≥70 (Mpa) | – | GB/T 30776 / GB/T 7753-87 |
| 6. Elongation | % | – | ≥35 | ≥30 | – | GB/T 7753-87 |
Specifications diagram for padded polyimide tape
Customizable styles
1. Polyimide CIRCLES
Primarily used for localized masking and protection in electronic manufacturing, such as:
- precise masking during PCB wave soldering and gold finger spraying (to prevent solder joints/gold fingers from being contaminated);
- protection of specific areas in high-temperature spraying processes (high temperature resistance, easy peeling, and no residue).
2. Polyimide rectangular
It belongs to the category of die-cut custom shapes and is commonly used for:
- fixing and insulating the positive/negative tabs of lithium batteries;
- component masking in SMT (Surface Mount Technology) processes;
- partial insulation wrapping of motor and transformer coils.
3. Polyimide Rolls
Supplied in roll form, suitable for large-area/continuous processing scenarios:
- Coil insulation wrapping for motors and transformers (resistant to high and low temperatures, high insulation level);
- Substrate for flexible printed circuits (FPC);
- High-temperature insulating sleeves for cables.
4. Polyimide Sheets
Suitable for large-area/custom-size insulation/substrate needs:
- Encapsulation substrates for high-temperature heating films (such as heating elements in aerospace/medical equipment);
- Sample support films for X-ray fluorescence spectroscopy (XRF) analysis;
- Structural support and overall protection of gold fingers for flexible circuit boards.
