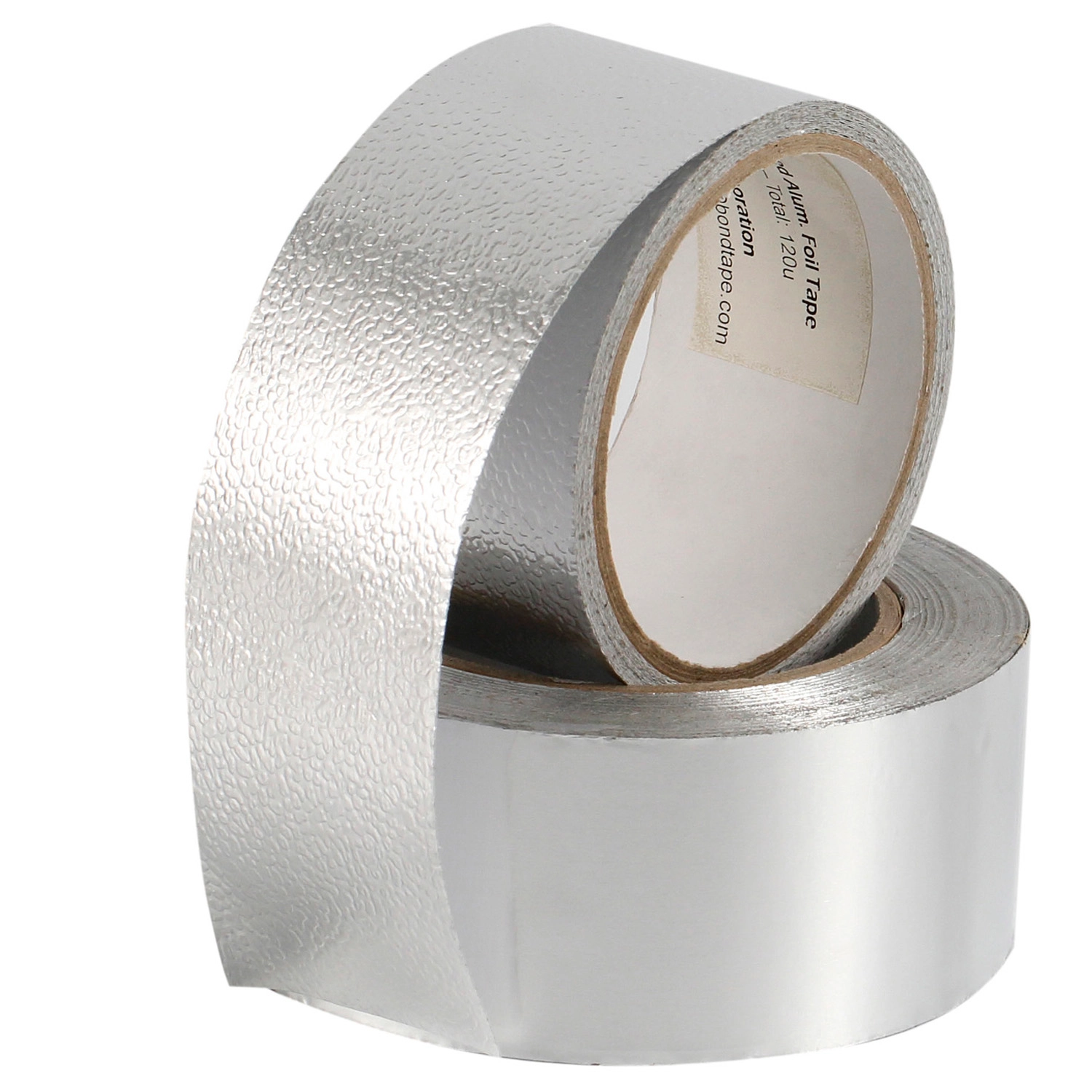

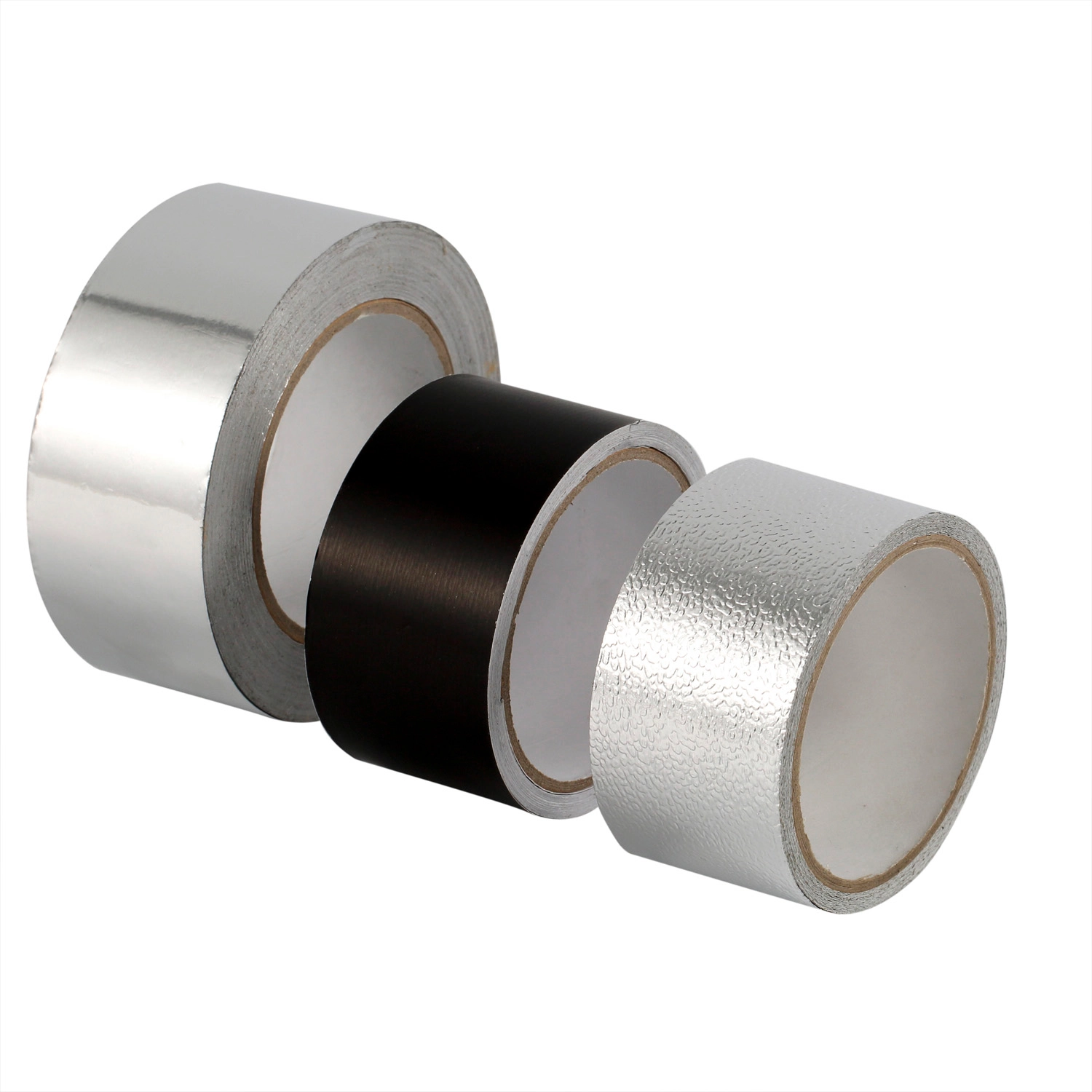

Pure Aluminum Foil Tape
Coated with solvent acrylic/flame-retardant, the aluminum foil tape is made from pure aluminum foil, making it an ideal raw materials for thermal insulation, moisture sealing, and EMI/RFI shielding in HVAC, construction, and industrial applications.
Backing micron: 18u/22u/25u/30u/36u/40u/45u/50u/75u/100u/125u
Glue thickness: 28um/32um/38um/customized
Detailed description
Pure Aluminum Foil Tape is made from pure aluminum foil, coated on one side with a high-performance pressure-sensitive adhesive and then laminated with a release paper (or film). Its core is the soft aluminum foil. For applications requiring only sealing and insulation, and in relatively mild environments, aluminum foil tape offers the most cost-effective option. Key applications include HVAC equipment, refrigerators and refrigeration equipment, electronics, and kitchen hoods.
Related Specifications
| Item No. | Description | Backing micron | Thickness micron | Adhesive | Application temperature |
|---|---|---|---|---|---|
| PT-AT1825 | foil/solvent acrylic adhesive/silicone release | 18μ | 55μ | solvent acrylic/flame-retardant | -30~120℃ |
| PT-AT2225 | 22μ | 66μ | -30~120℃ | ||
| PT-AT2525 | 25μ | 65μ | -30~120℃ | ||
| PT-AT3025 | 30μ | 70μ | -30~120℃ | ||
| PT-AT3625 | 36μ | 76μ | -30~120℃ | ||
| PT-AT4025 | 40μ | 80μ | -30~120℃ | ||
| PT-AT4525 | 45μ | 85μ | -30~120℃ | ||
| PT-AT5025 | 50μ | 90μ | -30~120℃ | ||
| PT-AT7525 | 75μ | 125μ | -30~120℃ | ||
| PT-AT10025 | 100μ | 150μ | -30~120℃ | ||
| PT-AT12525 | 125μ | 175μ | -30~120℃ |
FAQ
Lens Protection Tape Series
Specialized for encapsulating resin eyeglass lenses during high-temperature curing processes. Key features include high transparency, residue-free removal, and heat resistance up to 130°C (e.g., JT8860 for blue-light-blocking lenses)
Lithium Battery Tape Series
Includes termination tapes (for electrode insulation), PACK tapes (bundle fixation), and tab lead tapes (welding point protection). Made from PI/PET films with electrolytic corrosion resistance, critical for cylindrical/pouch cell safety
LED Encapsulation High-Temperature Tape Series
Designed for LED epoxy resin filling and curing (e.g., MY68C transparent tape for digital tubes). Withstands 150–180°C, prevents overflow, and leaves no residue after peeling
Connector Tapes Series
Insulating tapes for electronic connectors and terminals, ensuring stability in soldering (reflow peak: 260–300°C). Commonly uses PI films for dielectric strength
Insulation & Fixation Tapes Series
Glass fiber-reinforced tapes for coil binding in motors/transformers, offering mechanical strength and flame retardancy (180–220°C continuous use)
High-Temperature Double-Sided Tape Series
Features acrylic/silicone adhesives on PI/PET bases. Used for bonding heat sinks, battery modules, and composite materials, withstanding 120–180°C long-term
Masking Tapes Series
Includes high-temp masking paper and PET green tapes for spray painting, powder coating, and PCB gold finger protection. Resists solvents, leaves sharp edges, and operates at 150–230°C
Teflon Tape Series
PTFE-based tapes with ultra-low friction and 260–300°C continuous resistance. Applied in non-stick industrial conveyors, food packaging seals, and chemical equipment lining
Yes, we can develop tailored solutions based on your sketches or ideas to address your business challenges.
The Company serves all customer segments, offering tailored solutions for large enterprises, small businesses, and individual users.
It cleverly combines the excellent properties of aluminum foil (such as heat reflection, thermal conductivity, moisture sealing, and weather resistance) with the strong adhesive properties of the adhesive, making it a key material for sealing, shielding, thermal conductivity, and protection in a wide range of applications, including heating, ventilation, and air conditioning (HVAC), refrigeration, electronics, and construction.

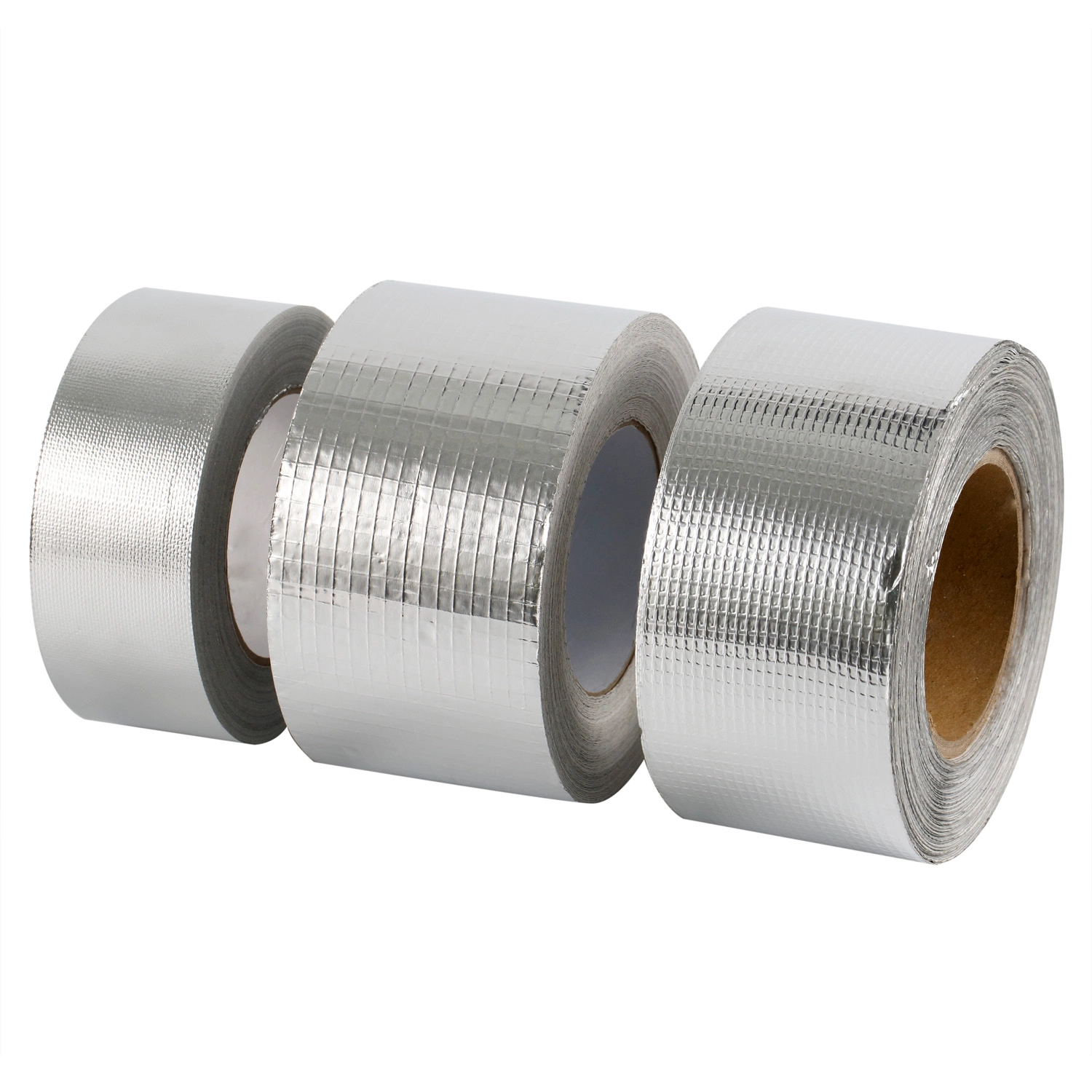

Aluminum foil fiberglass cloth tape, sometimes simply referred to as “aluminum foil fiberglass cloth tape,” is a high-performance reinforced aluminum foil tape.
It is not made from a single layer of aluminum foil, but rather a composite tape. Its structure consists of an aluminum foil outer layer laminated with fiberglass cloth through a unique lamination process, and then coated with a high-performance pressure-sensitive adhesive. This construction is designed to perfectly combine the advantages of both materials: retaining the excellent heat-reflecting, sealing, and moisture-proof properties of aluminum foil while leveraging the unparalleled mechanical strength and durability of fiberglass cloth. As a result, it is considered a “heavy-duty upgrade” to standard aluminum foil tape, specifically designed for use in demanding industrial environments that require even greater strength, abrasion resistance, and durability.
1. Heat Reflection & Insulation:
Aluminum foil’s surface reflects a significant portion of radiant heat, making it an excellent thermal and insulation material.
2. Sealing & Moisture Barrier:
Aluminum foil itself is completely impermeable to water and air, so the tape forms a perfect seal, effectively blocking moisture and water vapor.
3. Thermal & Electrical Conductivity:
Thermal conductivity enables it to conduct heat quickly and evenly, often used to improve cooling and heating efficiency.
Thermal conductivity makes it suitable for electromagnetic shielding (EMI) and electrostatic discharge (ESD) grounding.
4. Weather Resistance & Durability:
Aluminum foil offers excellent corrosion and aging resistance, resisting UV rays and extreme weather conditions, making it ideal for long-term outdoor use. 5. Strong Adhesion:
Utilizes high-performance pressure-sensitive adhesive to ensure a strong, long-lasting bond across a wide temperature range.
1. Backing Material
The backing is the main body of the tape, providing its core metallic properties.
Soft Temper Aluminum Foil:
Composition: This is the base material for all aluminum foil tapes. High-purity soft-temper aluminum foil is typically used.
Properties: “Soft” means the foil is extremely flexible, offering excellent ductility and conformability, allowing it to easily wrap around irregular surfaces and pipes, ensuring a tight, seamless fit.
2. Reinforcement Material: To enhance the mechanical strength of the tape, a layer of reinforcement is added between the aluminum foil and the adhesive layer.
Fiberglass Scrim:
Composition: A grid-like structure formed by interlaced fiberglass yarns. Function: This greatly increases the tape’s tensile strength, preventing it from breaking easily under extreme tension. This is the core of “reinforced aluminum foil tape.”
Fiberglass Cloth:
Composition: A cloth made of tightly woven glass fiber filaments.
Function: This provides not only extremely high tensile strength but also exceptional tear and puncture resistance. This is the core of “aluminum foil fiberglass cloth tape” and the strongest type.
3. Adhesive
The adhesive is crucial to determining the tape’s bonding performance, temperature resistance, and durability.
Acrylic Adhesive:
Features: This is the most popular and versatile adhesive type. It offers:
High Bond Strength: It forms a strong, permanent bond on a variety of surfaces.
Wide Temperature Range: It maintains stable performance over a wide temperature range (e.g., -30°C to +120°C). Excellent Weathering Resistance: Excellent UV and aging resistance, making it ideal for long-term outdoor use.
Classification: Available in solvent-based and emulsion-based types, solvent-based acrylic adhesives generally offer superior overall performance.
Rubber Adhesive:
Features: Its primary advantage is very high initial tack, but its temperature and weather resistance are inferior to acrylic adhesives.
Applications: Used in indoor applications where high initial tack is required but long-term weathering resistance is less critical.
Conductive Adhesive:
Features: Conductive particles (such as nickel, copper, or carbon powder) are added to acrylic adhesives, making the adhesive inherently conductive.
Applications: Specially designed for use in the electronics industry where electromagnetic shielding (EMI) and electrostatic discharge (ESD) shielding are required, ensuring a complete conductive path between the adhesive tape and the adhered object.
4. Release Liner
Composition: Typically silicone-coated glassine paper or PET film.
Purpose: Protects the adhesive surface from contamination during storage and transportation, and facilitates precision die-cutting.
1. Heating, Ventilation, and Air Conditioning (HVAC) and Building Insulation
This is the core and largest application area for aluminum foil tape. Energy efficiency and airtightness are crucial in heating, ventilation, and air conditioning systems.
Specific Applications:
Used for wrapping and sealing joints around insulation materials such as glass wool and rubber-plastic.
Used for gluing and sealing joints in flexible or rigid duct systems.
Used for wrapping insulation around pipes in equipment such as water heaters and boilers.
2. Refrigerator and Refrigeration Equipment Manufacturing
In the production of refrigeration equipment such as refrigerators, freezers, and air conditioners, aluminum foil tape is a key auxiliary material for improving energy efficiency.
Specific Applications:
Securely attaching the evaporator and refrigeration piping (usually copper tubing) to the refrigerator’s interior or back panel. 3. Electronics Industry
In precision electronic products, aluminum foil tape (especially conductive aluminum foil tape) is a key material for resolving electromagnetic interference (EMI) issues.
Specific Applications:
Wrapping cable harnesses to prevent internal signal leakage or interference from external signals.
Applied to the inside of electronic device housings to form a ground shield.
Used to dissipate static electricity and provide an electrostatic discharge (ESD) path.
4. Building Repair and Outdoor Applications
Aluminum foil tape’s excellent weather resistance and water resistance make it a reliable “all-weather” repair material.
Specific Applications:
Used for temporary repairs and sealing cracks and seams in metal roofs, color-coated steel sheets, and gutters.
Used for wrapping and protecting pipes exposed to the outdoors to protect them from UV rays and environmental corrosion.
Function:
Waterproof and weather-resistant: Strong adhesion and a corrosion-resistant aluminum foil base provide a durable, reliable waterproof seal that effectively withstands wind, rain, and sunlight.
5. Automotive and Aerospace
Specific Applications:
Used for wrapping wiring harnesses, fuel lines, and sensitive components within the engine compartments of automobiles and aircraft. Function:
Thermal Insulation: Reflects the significant radiant heat generated by the engine and exhaust system, protecting wiring harnesses and components from high-temperature damage.
